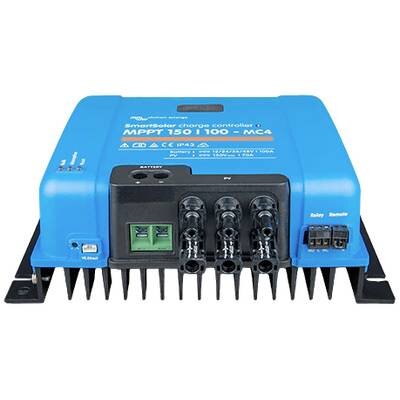

The Victron SmartSolar MPPT 150/100-MC4 VE.Can is a highly efficient Maximum Power Point Tracking (MPPT) solar charge controller that maximizes the energy yield from solar panels. With an input voltage of up to 150 V and a charging current of 100 A, it is ideal for large off-grid, hybrid, and energy storage systems.
The VE.Can interface allows multiple controllers to be connected in parallel and integrated into Victron GX systems (e.g., Cerbo GX, Venus GX, or Color Control GX). This enables central monitoring and control via the Victron VRM portal. Thanks to MC4 connectors, installation is quick, safe, and compliant with standards.
The integrated Bluetooth Smart chip enables direct connection to the VictronConnect app, which allows real-time data, trends, and settings to be conveniently accessed. The controller supports 12 V, 24 V, and 48 V battery systems and is compatible with lead-acid, AGM, gel, and LiFePO₄ batteries.
Typical applications
- Large photovoltaic and energy storage systems
- Off-grid and hybrid systems with GX communication
- Boats, yachts, motorhomes, and self-sufficient power supply
- Commercial and industrial solar systems
Main advantages
- High-efficiency MPPT control (>98%)
- 150 V PV input & 100 A charging current
- VE.Can interface for parallel connection & system integration
- MC4 connectors for fast & safe installation
- Integrated Bluetooth Smart – control via VictronConnect app
- Supports 12 V, 24 V, and 48 V battery systems
- Compatible with AGM, gel, lead-acid, and LiFePO₄ batteries
Technical specifications
| Model |
SmartSolar MPPT 150/100-MC4 VE.Can |
| PV input voltage (max.) |
150 V DC |
| Max. PV power (48 V system) |
approx. 5.8 kW |
| Max. charging current |
100 A |
| Battery voltage |
12 V / 24 V / 48 V (automatic detection) |
| Connections |
MC4 connectors (PV input), screw terminals (battery) |
| Communication |
VE.Can, Bluetooth Smart, VE.Direct |
| Efficiency |
> 98% |
| Protection |
IP43 (electronics) / IP22 (connection area) |
| Dimensions (H × W × D) |
305 × 216 × 103 mm |
| Weight |
Approx. 4.5 kg |
| Operating |
–30 °C to +60 °C (full power up to 40 °C) |
| Manufacturer |
Victron Energy |
